Model

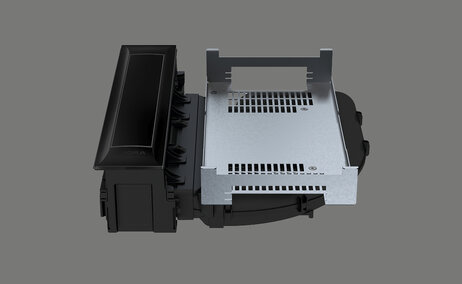

BORA hob extractor PKA3AB All Black, Professional 3.0

Brief description

Cooktop extractor

Mode of operation

Recirculated-air or exhaust air

Energy efficiency class

VRG

2.31

Article no.

40.002.232.00

Price CHF

3’006.- O

excl. VAT

Product description

Product description BORA Professional 3.0 hob extractor PKA3AB All Black
Power control via control knob
Power level display
Electric shutter
Shutter sensor
Stainless steel grease filter
Grease filter sensor
Automatic hob extractor
Automatic run-on
Filter service indicator
Interface for external devices
Safety switch-off
Connection option for two BORA universal fan modules
All Black Version, DLC coated

Technical data

Supply voltage
220 – 240 V
Frequency
50 Hz
Maximum power consumption
550 W
Weight (incl. accessories and packaging)
9.25 kg

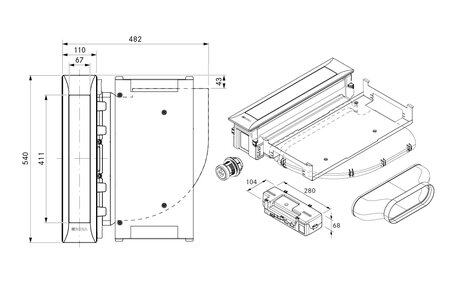

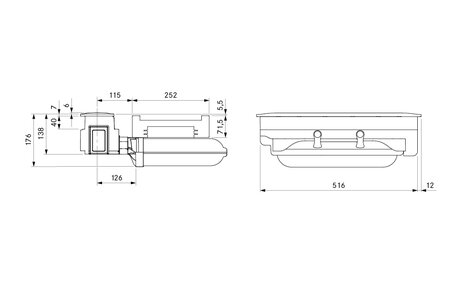

Dimensions (width x depth x height)
482 x 540 x 176 mm
Power levels
1-9, P
Exhaust air connection
BORA Ecotube 245 x 89 mm

Scope of delivery
Hob extractor PKA3AB
Operating and assembly instructions
Height compensation plate set
Mounting clamps
Control knob All Black
Stainless steel grease filter
Filter tray
Maintenance tray
Closure flap
Communication cable CAT 5
Universal control unit
Mains cable 1 m with plug type 12, 10 A
Cable control knob - interface / fume cupboard
Duct piece straight and duct piece bend

Planning information
Possible as recirculation or exhaust air system
Can be combined with all BORA Professional hobs and BORA Universal fan modules
Worktop height can be individually adjusted
Worktop depth: >= 700 (in combination with the straight duct piece >= 650)
Air ducting possible to the right or left
Fan can be placed in the plinth area due to low installation height (100 mm) (only when using the ULS plinth fan).
Mounting type: flush-mounted or top-mounted
Universal control unit as central connection point can be placed easily and space-saving in the plinth area.
Connection between fume cupboard and universal control unit by means of a CAT 5 communication cable.
The drawers or shelves in the base unit must be removable for maintenance and cleaning purposes.
The BORA Ecotube duct system is optimally matched to the BORA hob fume cupboards and guarantees 100% function and best performance. In the case of an exhaust air path longer than 6m or high pressure losses, an additional universal fan module must be used.

Planning note: With these units, the duct connection is designed for the BORA Ecotube duct system. To connect BORA Ecotube (connection 245 x 89 mm) with Naber connections (222 x 89 mm), an adapter (EFA, 40.001.779.00) is available / can be ordered separately. Can be freely combined with all BORA universal fan modules (can be ordered separately, fan motor not included in PKA3AB scope of delivery).
