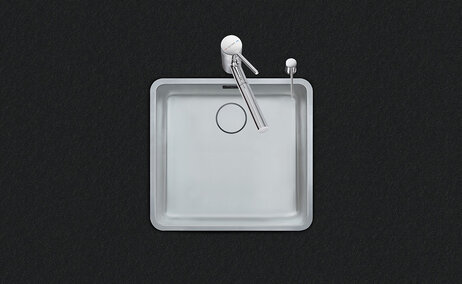

Vantis V 45IF
Fitting style
Flushmount sinks / Flat-mount inset
Cabinet size
50 cm
Border width
12 mm
Model
V 45IF
Basket
3½" eFlow Desino
Dimensions
450x420x175mm
Material
Stainless steel 18/10
Surface
Matt
Article no.
10.105.279.00
Price CHF
1’370.- A
excl. VAT
VRG
0.19
Product description
sFlow™ overflow and drain technology
Drain technology Desino: concealed drain with strainer underneath - type M
Concealed overflow eFlow

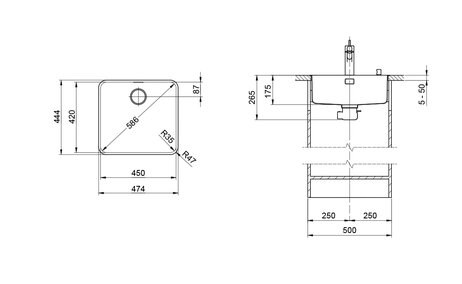

Outer Dimensions
474x444x265mm
Corner radius
35 mm
Standard pull-up knob
No pull-up knob necessary
Dispenser – mounting option
Free choice of positioning
Basket pre-assembly
Basket pre-assembly ex works
1 Product Model, 2 Installation Types
The special advantage of IF models: Installation as flush with the adjacent areas as well as laid flat on top is possible.
Flush-mounted installation: Recommendation for the choice of worktop:
We recommend installation in worktops made of ceramic, granite, artificial stone (e.g. Corian or Varicor) or solid wood. We do not recommend installation in coated chipboard.
Cleaning
The Desino Drain Sieve is dishwasher-safe and can be cleaned completely or separately up to a maximum temperature of 65°C.
Accessories
Downloads
Product informations
Technical data
Availability
Article in stock
Spares
3 ½" extra small strainer basket waste with overflow connection, type S
Dimension
0 x 0 x 0
Price CHF
78.- F
excl. VAT
Basket insert Desino, Type M, stainless steel
Dimension
0 x 0 x 0
Price CHF
77.- F
excl. VAT
3 ½" Tipo basket with overflow connection, type S
Dimension
0 x 0 x 0
Price CHF
61.- F
excl. VAT
Drain assembly parts, type M
Dimension
0 x 0 x 0
Price CHF
75.- F
excl. VAT
3 ½" eFlow Desino valve, type M
Dimension
0 x 0 x 0
Price CHF
623.- F
excl. VAT
Overflow group type 7
Dimension
0 x 0 x 0
Price CHF
26.- F
excl. VAT
Overflow cap sFlow square
Dimension
0 x 0 x 0
Price CHF
23.- F
excl. VAT
Overflow cap TouchFlow square
Dimension
0 x 0 x 0
Price CHF
23.- F
excl. VAT
1 ½" stem, Ø 52 mm
Dimension
0 x 0 x 0
Price CHF
28.- F
excl. VAT
3 ½" strainer inset complete, Ø 110 mm, stainless steel matt
Dimension
0 x 0 x 0
Price CHF
27.- F
excl. VAT
3 ½" Tipo strainer basket complete, Ø 110 mm, polished
Dimension
0 x 0 x 0
Price CHF
44.- F
excl. VAT
3 ½" Tipo strainer basket complete, Ø 110 mm, matt
Dimension
0 x 0 x 0
Price CHF
44.- F
excl. VAT
Pull-up cable complete, length 635mm
Dimension
0 x 0 x 0
Price CHF
34.- F
excl. VAT
Flat gasket, fitting: basket type S
Dimension
0 x 0 x 0
Price CHF
5.- F
excl. VAT
Moulded gasket 1½", Ø 52 mm
Dimension
0 x 0 x 0
Price CHF
5.- F
excl. VAT
Moulded gasket, fitting: basket type S
Dimension
0 x 0 x 0
Price CHF
5.- F
excl. VAT
Special screw M 12 x 1.5, L = 28 mm
Dimension
0 x 0 x 0
Price CHF
7.- F
excl. VAT
3 ½" strainer inset complete, Ø 110 mm, stainless steel polished
Dimension
0 x 0 x 0
Price CHF
27.- F
excl. VAT
3 ½" strainer TouchFlow waste with concealed overflow, type S
Dimension
0 x 0 x 0
Price CHF
406.- F
excl. VAT
3 ½" strainer TouchFlow waste with concealed overflow, type S
Dimension
0 x 0 x 0
Price CHF
406.- F
excl. VAT
